工作条件 | |
表面速度 | ≤0.6m/s |
工作温度 | -40℃+110℃ |
工作压力 | 350bar |
表面粗糙度 | µmRa | µmRt |
动密封面 Rod ØD1 | 0.1 ~ 0.4 | 4 max |
静密封面 Ød1 | 1.6 max | 10 max |
静态沟槽面 L1 | 3.2 max | 16 max |

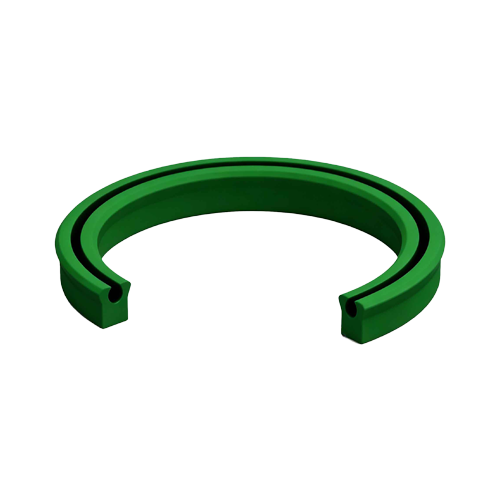

K513 是一种对称型挤压密封,适用于杆封和活塞杆封应用。它的矩形横截面确保压盖的稳定性,锋利的斜边由精密修边设备修边而成。
K513 型密封作为一个独立的密封或可以与缓冲密封串联使用。在活塞应用中,该型号将起到单向密封的作用。该型号不能背靠背安装,在双向作用力下,可能出现压力陷阱。
● 容易安装
● 优异的耐磨性
● 较高的抗挤压性
● 刀削精密密封唇
● 适用于苛刻的工作环境
● 对震动和压力峰值的不敏感性
● 在无载和低温的条件下具有理想的密封性能
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
13 | 20 | 5.00 | 5.50 | 5130130 | 30 | 38 | 5.70 | 6.30 | 5130300 | |
13 | 23 | 7.30 | 8.00 | 5130131 | 30 | 38 | 7.00 | 7.70 | 5130301 | |
14 | 22 | 5.70 | 6.30 | 5130140 | 30 | 40 | 7.00 | 7.70 | 5130302 | |
14 | 24 | 7.30 | 8.00 | 5130141 | 30 | 40 | 7.50 | 8.30 | 5130303 | |
15 | 23 | 5.70 | 6.30 | 5130150 | 30 | 42 | 10.00 | 11.00 | 5130304 | |
16 | 24 | 5.70 | 6.30 | 5130160 | 30 | 45 | 8.00 | 8.80 | 5130305 | |
16 | 26 | 7.30 | 8.00 | 5130161 | 30 | 45 | 11.40 | 12.50 | 5130306 | |
18 | 24 | 5.00 | 5.50 | 5130180 | 32 | 40 | 5.70 | 6.30 | 5130320 | |
18 | 26 | 5.70 | 6.30 | 5130181 | 32 | 40 | 6.00 | 6.60 | 5130321 | |
18 | 28 | 7.30 | 8.00 | 5130182 | 32 | 42 | 6.30 | 6.90 | 5130322 | |
19 | 29 | 7.30 | 8.00 | 5130190 | 32 | 42 | 7.30 | 8.00 | 5130323 | |
20 | 28 | 5.50 | 6.00 | 5130200 | 32 | 47 | 11.40 | 12.50 | 5130324 | |
20 | 28 | 5.70 | 6.30 | 5130201 | 35 | 43 | 5.70 | 6.30 | 5130350 | |
20 | 28 | 6.50 | 7.20 | 5130202 | 35 | 43 | 6.50 | 7.20 | 5130351 | |
20 | 30 | 7.30 | 8.00 | 5130203 | 35 | 45 | 8.00 | 8.80 | 5130352 | |
20 | 32.7 | 9.50 | 10.50 | 5130204 | 35 | 45 | 10.00 | 11.00 | 5130353 | |
22 | 30 | 5.70 | 6.30 | 5130220 | 35 | 47 | 10.00 | 11.00 | 5130354 | |
22 | 32 | 7.30 | 8.00 | 5130221 | 35 | 50 | 11.40 | 12.50 | 5130355 | |
24 | 30 | 5.00 | 5.50 | 5130240 | 36 | 44 | 5.70 | 6.30 | 5130360 | |
24 | 32 | 7.00 | 7.70 | 5130241 | 36 | 46 | 7.30 | 8.00 | 5130361 | |
25 | 33 | 5.70 | 6.30 | 5130250 | 36 | 51 | 11.40 | 12.50 | 5130362 | |
25 | 35 | 7.30 | 8.00 | 5130251 | 38 | 50 | 7.00 | 7.70 | 5130380 | |
25 | 40 | 10.00 | 11.00 | 5130252 | 40 | 48 | 5.70 | 6.30 | 5130400 | |
28 | 35 | 6.50 | 7.20 | 5130280 | 40 | 50 | 7.30 | 8.00 | 5130401 | |
28 | 36 | 5.70 | 6.30 | 5130281 | 40 | 50 | 10.00 | 11.00 | 5130402 | |
28 | 38 | 7.30 | 8.00 | 5130282 | 40 | 52 | 10.00 | 11.00 | 5130403 |
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
40 | 55 | 10.00 | 11.00 | 5130404 | 55 | 65 | 11.00 | 12.10 | 5130551 | |
40 | 55 | 11.40 | 12.50 | 5130405 | 55 | 70 | 11.00 | 12.10 | 5130552 | |
42 | 50 | 6.50 | 7.20 | 5130420 | 55 | 75 | 14.50 | 16.00 | 5130553 | |
45 | 53 | 7.30 | 8.00 | 5130450 | 56 | 66 | 10.00 | 11.00 | 5130560 | |
45 | 55 | 7.30 | 8.00 | 5130451 | 56 | 71 | 11.40 | 12.50 | 5130561 | |
45 | 55 | 8.00 | 8.80 | 5130452 | 56 | 76 | 14.60 | 16.00 | 5130562 | |
45 | 55 | 10.00 | 11.00 | 5130453 | 60 | 68 | 7.00 | 7.70 | 5130600 | |
45 | 60 | 11.40 | 12.50 | 5130454 | 60 | 68 | 11.40 | 12.50 | 5130601 | |
45 | 65 | 11.40 | 12.50 | 5130455 | 60 | 68 | 13.00 | 14.50 | 5130602 | |
48 | 60 | 10.00 | 11.00 | 5130480 | 60 | 70 | 7.30 | 8.00 | 5130603 | |
50 | 58 | 8.00 | 8.80 | 5130500 | 60 | 70 | 10.50 | 11.60 | 5130604 | |
50 | 60 | 7.30 | 8.00 | 5130501 | 60 | 70 | 12.00 | 13.20 | 5130605 | |
50 | 60 | 7.50 | 8.30 | 5130502 | 60 | 72 | 9.00 | 9.90 | 5130606 | |
50 | 60 | 10.00 | 11.00 | 5130503 | 60 | 72 | 10.00 | 11.00 | 5130607 | |
50 | 60 | 11.40 | 12.50 | 5130504 | 60 | 75 | 13.50 | 14.90 | 5130608 | |
50 | 62 | 9.50 | 10.50 | 5130505 | 60 | 80 | 12.00 | 13.20 | 5130609 | |
50 | 63 | 10.00 | 11.00 | 5130506 | 60 | 80 | 14.00 | 15.40 | 5130610 | |
50 | 65 | 11.40 | 12.50 | 5130507 | 63 | 73 | 5.50 | 6.00 | 5130630 | |
50 | 70 | 14.60 | 16.10 | 5130508 | 63 | 75 | 8.70 | 9.60 | 5130631 | |
52 | 62 | 7.30 | 8.00 | 5130520 | 63 | 78 | 11.40 | 12.50 | 5130632 | |
53 | 63 | 7.30 | 8.00 | 5130530 | 63 | 83 | 14.50 | 16.00 | 5130633 | |
54 | 63.5 | 6.80 | 7.50 | 5130540 | 64 | 80 | 12.00 | 13.20 | 5130640 | |
54 | 63.5 | 9.50 | 10.50 | 5130541 | 65 | 73 | 7.00 | 7.70 | 5130650 | |
54 | 66.7 | 9.50 | 10.50 | 5130542 | 65 | 75 | 10.00 | 11.00 | 5130651 | |
54 | 69.9 | 12.70 | 14.00 | 5130543 | 65 | 85 | 12.00 | 13.20 | 5130652 | |
55 | 65 | 7.30 | 8.00 | 5130550 | 65 | 85 | 15.00 | 16.50 | 5130653 |
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
68 | 88 | 15.00 | 16.50 | 5130680 | 90 | 100 | 11.40 | 12.50 | 5130900 | |
70 | 80 | 11.40 | 12.50 | 5130700 | 90 | 105 | 11.40 | 12.50 | 5130901 | |
70 | 82 | 8.70 | 9.60 | 5130701 | 90 | 110 | 12.00 | 13.20 | 5130902 | |
70 | 82 | 9.50 | 10.50 | 5130702 | 90 | 110 | 14.50 | 16.00 | 5130903 | |
70 | 85 | 9.50 | 10.50 | 5130703 | 94 | 108.5 | 12.70 | 14.00 | 5130940 | |
70 | 85 | 11.40 | 12.50 | 5130704 | 95 | 105 | 11.40 | 12.50 | 5130950 | |
70 | 90 | 12.00 | 13.20 | 5130705 | 95 | 110 | 11.40 | 12.50 | 5130951 | |
70 | 90 | 14.50 | 16.00 | 5130706 | 100 | 108 | 6.50 | 7.20 | 5131000 | |
73 | 80 | 7.00 | 7.70 | 5130730 | 100 | 110 | 11.40 | 12.50 | 5131001 | |
75 | 83 | 6.50 | 7.20 | 5130750 | 100 | 115 | 11.00 | 12.10 | 5131002 | |
75 | 85 | 10.50 | 11.60 | 5130751 | 100 | 120 | 12.00 | 13.20 | 5131003 | |
75 | 90 | 11.40 | 12.50 | 5130752 | 100 | 120 | 14.50 | 16.00 | 5131004 | |
78 | 86 | 13.00 | 14.50 | 5130780 | 105 | 115 | 10.00 | 11.00 | 5131050 | |
80 | 88 | 6.50 | 7.20 | 5130800 | 105 | 120 | 11.40 | 12.50 | 5131051 | |
80 | 90 | 11.40 | 12.50 | 5130801 | 105 | 125 | 14.50 | 16.00 | 5131052 | |
80 | 92 | 9.00 | 9.90 | 5130802 | 108 | 127 | 15.90 | 17.50 | 5131080 | |
80 | 95 | 11.40 | 12.50 | 5130804 | 110 | 120 | 10.50 | 11.60 | 5131100 | |
80 | 100 | 9.50 | 10.50 | 5130805 | 110 | 125 | 11.40 | 12.50 | 5131101 | |
80 | 100 | 12.00 | 13.20 | 5130806 | 110 | 130 | 12.00 | 13.20 | 5131102 | |
80 | 100 | 13.50 | 14.80 | 5130807 | 110 | 130 | 14.50 | 16.00 | 5131103 | |
80 | 100 | 15.00 | 16.50 | 5130808 | 110 | 135 | 18.20 | 20.00 | 5131104 | |
82 | 92 | 10.00 | 11.00 | 5130820 | 115 | 130 | 11.40 | 12.50 | 5131150 | |
85 | 95 | 9.50 | 10.50 | 5130850 | 120 | 135 | 11.40 | 12.50 | 5131200 | |
85 | 100 | 9.50 | 10.50 | 5130851 | 120 | 140 | 15.00 | 16.50 | 5131201 | |
85 | 100 | 12.00 | 13.20 | 5130852 | 125 | 135 | 11.40 | 12.50 | 5131250 | |
85 | 105 | 14.50 | 16.00 | 5130853 | 125 | 140 | 11.40 | 12.50 | 5131251 |
