工作条件 | 公制 | 英制 |
最大速度 | 1.0 m/sec | 3.0 ft/sec |
温度范围 | -45℃~+110℃ | -50℉~+230℉ |
最大压力 | ≤400bar | 6000p.s.i. |
最大挤出间隙 | 最大挤出间隙值显示了最大的单边允许间隙, | ||
压力 bar | 160 | 250 | 400 |
最大间隙 mm | 0.6 | 0.5 | 0.4 |
压力 p.s.i. | 2400 | 3750 | 6000 |
最大间隙 in | 0.024 | 0.020 | 0.016 |
表面粗糙度 | μmRa | μmRt | μinClA | μinRMS |
动密封面Φd1 | 0.1<>0.4 | 4 max | 4<>16 | 5<>18 |
静密封面ΦD1 | 1.6 max | 10 max | 63 max | 70 max |
静态沟槽面L1 | 3.2 max | 16 max | 125 max | 140 max |
斜面和半径 | |||||||
沟槽截面≤ S mm | 公制 | 4.0 | 5.0 | 7.5 | 10.0 | 12.5 | 15.0 |
最小倒角 C mm | 3.0 | 3.5 | 5.0 | 6.5 | 7.0 | 8.0 | |
最大圆角半径 r1 mm | 0.2 | 0.4 | 0.8 | 0.8 | 1.2 | 1.6 | |
最大圆角半径 r2 mm | 0.4 | 0.8 | 1.2 | 1.2 | 1.6 | 2.4 | |
沟槽截面≤ S mm | 英制 | 0.125 | 0.187 | 0.250 | 0.312 | 0.375 | 0.500 |
最小倒角 C mm | 0.093 | 0.093 | 0.125 | 0.156 | 0.187 | 0.217 | |
最大圆角半径 r1 mm | 0.008 | 0.008 | 0.016 | 0.032 | 0.032 | 0.032 | |
最大圆角半径 r2 mm | 0.016 | 0.016 | 0.032 | 0.047 | 0.047 | 0.047 |
公差 | Φd1 | ΦD1 | L1 mm | L1 in |
f9 | Js11 | +0.25 -0 | +0.010 -0 |

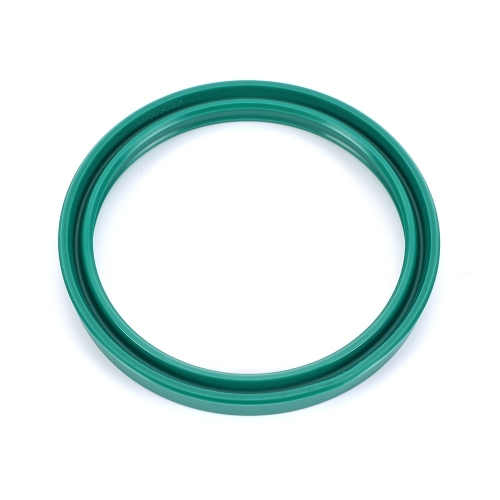

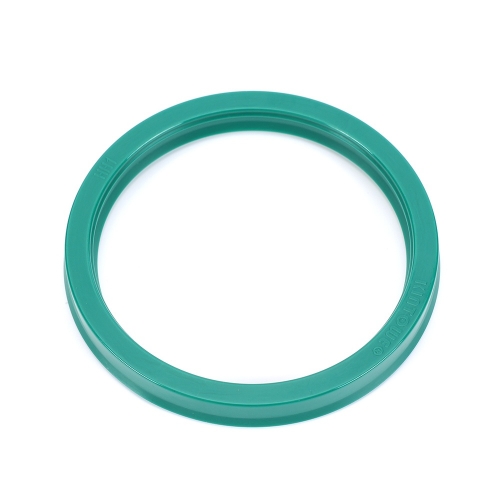

Kintowe K605 系列是一种不对称的密封件,在轻载和中载应用中提供最干燥的干密封作用。
K605 的设计参考了 Hallite 605 、Parker BS 等市场上主流密封公司的设计标准 。
该型号采用进口聚氨酯材料KINTOWE ®01 注塑成型,是一种柔韧性极强且容易安装的密封件。
● 双唇的设计保证了低摩擦,高效性能密封,保护主唇,提高密封件的稳定性
● 容易安装
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
10 | 15 | 3.6 | 4.0 | 6050100 | 20 | 26 | 6.5 | 7.6 | 6050202 | |
12 | 18 | 4.0 | 4.5 | 6050120 | 20 | 27 | 6.1 | 6.7 | 6050203 | |
12 | 18 | 5.7 | 6.3 | 6050121 | 20 | 28 | 5.0 | 5.7 | 6050204 | |
12 | 19 | 4.5 | 5.0 | 6050122 | 20 | 28 | 5.7 | 6.3 | 6050205 | |
12 | 19 | 5.1 | 5.6 | 6050123 | 20 | 28 | 6.3 | 7.0 | 6050206 | |
12 | 20 | 5.7 | 6.3 | 6050124 | 20 | 30 | 6.0 | 7.0 | 6050207 | |
12 | 22 | 7.3 | 8.0 | 6050125 | 20 | 30 | 7.3 | 8.0 | 6050208 | |
12 | 22 | 7.7 | 9.0 | 6050126 | 20 | 30 | 7.7 | 9.0 | 6050209 | |
13 | 20 | 4.5 | 5.0 | 6050130 | 20 | 30 | 10.0 | 11.0 | 6050210 | |
14 | 21 | 5.1 | 5.6 | 6050140 | 22 | 30 | 5.0 | 5.7 | 6050220 | |
14 | 22 | 5.7 | 6.3 | 6050141 | 22 | 30 | 5.7 | 6.3 | 6050221 | |
14 | 24 | 7.3 | 8.0 | 6050142 | 22 | 30 | 7.3 | 8.0 | 6050222 | |
15 | 22 | 5.7 | 6.3 | 6050150 | 22 | 32 | 7.3 | 8.0 | 6050223 | |
16 | 22 | 4.5 | 5.0 | 6050160 | 22 | 32 | 8.2 | 9.0 | 6050224 | |
16 | 22 | 5.0 | 6.0 | 6050161 | 22 | 32 | 10.0 | 11.0 | 6050225 | |
16 | 24 | 5.8 | 6.3 | 6050162 | 24 | 30 | 4.5 | 5.0 | 6050240 | |
16 | 26 | 7.7 | 9.0 | 6050163 | 25 | 33 | 5.0 | 5.7 | 6050250 | |
18 | 24 | 4.5 | 5.0 | 6050180 | 25 | 33 | 5.7 | 6.3 | 6050251 | |
18 | 25 | 5.0 | 6.0 | 6050181 | 25 | 33 | 6.8 | 7.5 | 6050252 | |
18 | 26 | 5.0 | 5.7 | 6050182 | 25 | 33 | 8.0 | 9.0 | 6050253 | |
18 | 26 | 5.7 | 6.3 | 6050183 | 25 | 33 | 10.0 | 11.0 | 6050254 | |
18 | 26 | 6.0 | 7.0 | 6050184 | 25 | 35 | 7.3 | 8.0 | 6050255 | |
18 | 26 | 8.2 | 9.0 | 6050185 | 25 | 35 | 7.7 | 9.0 | 6050256 | |
18 | 28 | 7.7 | 9.0 | 6050186 | 25 | 35 | 10.0 | 11.0 | 6050257 | |
20 | 25 | 3.2 | 3.5 | 6050200 | 25 | 37 | 10.0 | 11.0 | 6050258 | |
20 | 26 | 5.0 | 5.5 | 6050201 | 25 | 40 | 10.0 | 11.0 | 6050259 |
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
26 | 36 | 7.0 | 8.0 | 6050260 | 35 | 43 | 8.2 | 9.0 | 6050352 | |
28 | 35.5 | 5.0 | 5.7 | 6050280 | 35 | 45 | 6.0 | 7.0 | 6050353 | |
28 | 36 | 5.7 | 6.3 | 6050281 | 35 | 45 | 7.0 | 8.0 | 6050354 | |
28 | 38 | 7.3 | 8.0 | 6050282 | 35 | 45 | 7.7 | 9.0 | 6050355 | |
28 | 43 | 11.4 | 12.5 | 6050283 | 35 | 45 | 10.0 | 11.0 | 6050356 | |
30 | 38 | 5.7 | 6.3 | 6050300 | 35 | 50 | 9.0 | 10.0 | 6050357 | |
30 | 38 | 6.3 | 7.0 | 6050301 | 35 | 50 | 10.0 | 11.0 | 6050358 | |
30 | 40 | 6.0 | 7.0 | 6050302 | 36 | 44 | 6.4 | 7.5 | 6050360 | |
30 | 40 | 7.3 | 8.0 | 6050303 | 36 | 44 | 8.2 | 9.0 | 6050361 | |
30 | 40 | 10.0 | 11.0 | 6050304 | 36 | 46 | 5.7 | 6.3 | 6050362 | |
30 | 42 | 10.9 | 12.0 | 6050305 | 36 | 46 | 10.0 | 11.0 | 6050363 | |
30 | 43 | 10.0 | 11.0 | 6050306 | 36 | 51 | 10.0 | 11.0 | 6050364 | |
30 | 45 | 9.0 | 10.0 | 6050307 | 37 | 47 | 10.0 | 11.0 | 6050370 | |
30 | 45 | 10.0 | 11.0 | 6050308 | 38 | 48 | 8.0 | 9.0 | 6050380 | |
30 | 50 | 10.0 | 11.0 | 6050309 | 38 | 48 | 10.0 | 11.0 | 6050381 | |
32 | 40 | 6.0 | 7.0 | 6050320 | 38 | 50 | 10.0 | 11.0 | 6050382 | |
32 | 40 | 7.7 | 9.0 | 6050321 | 38 | 53 | 10.0 | 11.0 | 6050383 | |
32 | 42 | 6.0 | 7.0 | 6050322 | 40 | 48 | 8.2 | 9.0 | 6050400 | |
32 | 42 | 7.3 | 8.0 | 6050323 | 40 | 50 | 6.0 | 7.0 | 60504001 | |
32 | 42 | 10.0 | 11.0 | 6050324 | 40 | 50 | 7.3 | 8.0 | 60504002 | |
32 | 45 | 10.0 | 11.0 | 6050325 | 40 | 50 | 9.0 | 10.0 | 60504003 | |
32 | 47 | 9.1 | 10.0 | 6050326 | 40 | 50 | 10.0 | 11.0 | 60504004 | |
32 | 47 | 10.0 | 11.0 | 6050327 | 40 | 52 | 10.9 | 12.0 | 60504005 | |
32 | 48 | 10.0 | 11.0 | 6050328 | 40 | 55 | 7.3 | 8.0 | 60504006 | |
35 | 43 | 5.7 | 6.3 | 6050350 | 40 | 55 | 9.0 | 10.0 | 60504007 | |
35 | 43 | 6.3 | 7.0 | 6050351 | 40 | 55 | 10.0 | 11.0 | 60504008 |
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
40 | 55 | 11.4 | 12.5 | 60504009 | 50 | 63 | 10.0 | 11.0 | 60505007 | |
40 | 60 | 12.0 | 13.0 | 60504010 | 50 | 65 | 9.0 | 10.0 | 60505008 | |
42 | 50 | 5.7 | 6.3 | 60504200 | 50 | 65 | 9.5 | 10.5 | 60505009 | |
42 | 50 | 7.5 | 8.0 | 60504201 | 50 | 65 | 10.0 | 11.0 | 60505010 | |
42 | 52 | 6.0 | 7.0 | 60504203 | 50 | 65 | 10.9 | 12.0 | 60505011 | |
42 | 52 | 10.0 | 11.0 | 60504204 | 50 | 65 | 11.4 | 12.5 | 60505012 | |
42 | 53 | 6.0 | 7.0 | 60504205 | 50 | 70 | 12.0 | 13.0 | 60505013 | |
45 | 53 | 7.3 | 8.0 | 60504500 | 53 | 63 | 6.0 | 7.0 | 60505300 | |
45 | 53 | 8.1 | 9.0 | 60504501 | 53 | 65 | 9.0 | 10.0 | 60505301 | |
45 | 53 | 11.8 | 13.0 | 60504502 | 55 | 63 | 8.2 | 9.0 | 60505500 | |
45 | 55 | 5.6 | 6.3 | 60504503 | 55 | 65 | 6.0 | 7.0 | 60505501 | |
45 | 55 | 6.0 | 7.0 | 60504504 | 55 | 65 | 7.3 | 8.0 | 60505502 | |
45 | 55 | 7.3 | 8.0 | 60504505 | 55 | 65 | 8.2 | 9.0 | 60505503 | |
45 | 55 | 8.0 | 9.0 | 60504506 | 55 | 65 | 10.0 | 11.0 | 60505504 | |
45 | 55 | 10.0 | 11.0 | 60504507 | 55 | 65 | 11.8 | 13.0 | 60505505 | |
45 | 60 | 9.0 | 10.0 | 60504508 | 55 | 68 | 10.0 | 11.0 | 60505506 | |
45 | 60 | 10.0 | 11.0 | 60504509 | 55 | 70 | 9.0 | 10.0 | 6050557 | |
45 | 60 | 11.4 | 12.5 | 60504510 | 55 | 70 | 10.0 | 11.0 | 6050558 | |
45 | 65 | 12.0 | 13.0 | 60504511 | 55 | 75 | 12.0 | 13.0 | 6050559 | |
50 | 57 | 9.0 | 10.0 | 60505000 | 56 | 66 | 10.0 | 11.0 | 6050560 | |
50 | 60 | 6.0 | 7.0 | 60505001 | 56 | 71 | 10.0 | 11.0 | 6050561 | |
50 | 60 | 7.3 | 8.0 | 60505002 | 56 | 71 | 11.4 | 12.5 | 6050562 | |
50 | 60 | 8.2 | 9.0 | 60505003 | 60 | 68 | 11.4 | 12.5 | 6050600 | |
50 | 60 | 10.0 | 11.0 | 60505004 | 60 | 70 | 6.0 | 7.0 | 6050601 | |
50 | 60 | 11.8 | 13.0 | 60505005 | 60 | 70 | 7.3 | 8.0 | 6050602 | |
50 | 62.7 | 9.5 | 10.5 | 60505006 | 60 | 72 | 10.0 | 11.0 | 6050603 |
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
60 | 73 | 10.0 | 11.0 | 6050604 | 70 | 85 | 9.0 | 10.0 | 6050705 | |
60 | 75 | 9.0 | 10.0 | 6050605 | 70 | 85 | 10.0 | 11.0 | 6050706 | |
60 | 75 | 10.0 | 11.0 | 6050606 | 70 | 85 | 11.4 | 12.5 | 6050707 | |
60 | 75 | 11.4 | 12.5 | 6050607 | 70 | 90 | 12.0 | 13.0 | 6050708 | |
60 | 76 | 10.0 | 11.0 | 60506010 | ||||||
60 | 80 | 11.4 | 12.5 | 6050608 | 75 | 83 | 11.4 | 12.5 | 6050750 | |
60 | 80 | 12.0 | 13.0 | 6050609 | 75 | 85 | 6.0 | 7.0 | 6050751 | |
63 | 73 | 6.0 | 7.0 | 6050630 | 75 | 85 | 11.4 | 12.5 | 6050752 | |
63 | 73 | 11.8 | 13.0 | 6050631 | 75 | 85 | 11.8 | 13.0 | 6050753 | |
63 | 75 | 8.7 | 10 | 6050630 | 75 | 88 | 10.0 | 11.0 | 6050754 | |
63 | 78 | 10.0 | 11.0 | 6050632 | 75 | 90 | 9.0 | 10.0 | 6050755 | |
63 | 78 | 11.4 | 12.5 | 6050633 | 75 | 90 | 10.0 | 11.0 | 6050756 | |
63 | 83 | 11.8 | 13.0 | 6050634 | 75 | 90 | 11.4 | 12.5 | 6050757 | |
65 | 75 | 6.0 | 7.0 | 6050650 | 75 | 95 | 12.0 | 13.0 | 6050758 | |
65 | 75 | 11.8 | 13.0 | 6050651 | 77.5 | 87.5 | 6.0 | 7.0 | 605077D | |
65 | 77 | 9.0 | 10.0 | 6050652 | 80 | 88 | 10.9 | 12.0 | 6050800 | |
65 | 78 | 10.0 | 11.0 | 6050653 | 80 | 90 | 6.0 | 7.0 | 6050801 | |
65 | 80 | 9.0 | 10.0 | 6050654 | 80 | 90 | 10.0 | 11.0 | 6050802 | |
65 | 80 | 10.0 | 11.0 | 6050655 | 80 | 90 | 11.8 | 13.0 | 6050803 | |
65 | 85 | 12.0 | 13.0 | 6050656 | 80 | 92 | 8.7 | 9.6 | 6050804 | |
67 | 77 | 6.0 | 7.0 | 6050670 | 80 | 93 | 10.0 | 11.0 | 6050805 | |
70 | 78 | 11.4 | 12.5 | 6050700 | 80 | 95 | 9.0 | 10.0 | 6050806 | |
70 | 80 | 6.0 | 7.0 | 6050701 | 80 | 95 | 10.0 | 11.0 | 6050807 | |
70 | 80 | 7.3 | 8.0 | 6050701 | 80 | 95 | 11.4 | 12.5 | 6050808 | |
70 | 80 | 11.4 | 12.5 | 6050702 | 80 | 100 | 12.0 | 13.0 | 6050809 | |
70 | 82 | 10.0 | 11.0 | 6050703 | 85 | 93 | 8.2 | 9.0 | 6050850 | |
70 | 83 | 10.0 | 11.0 | 6050704 | 85 | 93 | 10.0 | 11.0 | 6050851 |
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
85 | 93 | 11.4 | 12.5 | 6050852 | 105 | 120 | 9.0 | 10.0 | 6051051 | |
85 | 95 | 11.8 | 13.0 | 6050853 | 105 | 120 | 10.0 | 11.0 | 6051052 | |
85 | 100 | 9.0 | 10.0 | 6050854 | 105 | 120 | 14.5 | 16.0 | 6051053 | |
85 | 100 | 10.0 | 11.0 | 6050855 | 105 | 125 | 12.0 | 13.0 | 6051054 | |
85 | 105 | 12.0 | 13.0 | 6050856 | 105 | 125 | 14.5 | 16.0 | 6051055 | |
90 | 98 | 11.4 | 12.5 | 6050900 | 110 | 123 | 9.0 | 10.0 | 6051100 | |
90 | 100 | 6.8 | 7.5 | 6050901 | 110 | 125 | 9.0 | 10.0 | 6051101 | |
90 | 100 | 9.0 | 10.0 | 6050902 | 110 | 125 | 10.0 | 11.0 | 6051102 | |
90 | 100 | 11.4 | 12.5 | 6050903 | 110 | 125 | 14.5 | 16.0 | 6051103 | |
90 | 100 | 11.8 | 13.0 | 6050904 | 110 | 130 | 10.0 | 11.0 | 6051107 | |
90 | 105 | 9.0 | 10.0 | 6050905 | 110 | 130 | 12.0 | 13.0 | 6051104 | |
90 | 105 | 10.0 | 11.0 | 6050906 | 110 | 130 | 14.5 | 16.0 | 6051105 | |
90 | 105 | 11.4 | 12.5 | 6050907 | 110 | 135 | 14.5 | 16.0 | 6051106 | |
90 | 110 | 12.0 | 13.0 | 6050908 | 115 | 125 | 11.0 | 12.0 | 6051150 | |
95 | 103 | 11.4 | 12.5 | 6050950 | 115 | 130 | 9.0 | 10.0 | 6051151 | |
95 | 110 | 9.0 | 10.0 | 6050951 | 115 | 130 | 10.0 | 11.0 | 6051152 | |
95 | 110 | 10.0 | 11.0 | 6050952 | 115 | 130 | 14.5 | 16.0 | 6051153 | |
95 | 110 | 10.5 | 11.5 | 6050953 | 115 | 135 | 12.0 | 13.0 | 6051154 | |
95 | 115 | 12.0 | 13.0 | 6050954 | 120 | 128 | 11.4 | 12.5 | 6051200 | |
100 | 108 | 10.9 | 12.0 | 6051000 | 120 | 130 | 10.9 | 12.0 | 6051201 | |
100 | 110 | 10.9 | 12.0 | 6051001 | 120 | 135 | 9.0 | 10.0 | 6051202 | |
100 | 115 | 9.0 | 10.0 | 6051002 | 120 | 135 | 10.0 | 11.0 | 6051203 | |
100 | 115 | 10.0 | 11.0 | 6051003 | 120 | 140 | 10.0 | 11.0 | 6051206 | |
100 | 115 | 12.0 | 13.0 | 6051004 | 120 | 140 | 12.0 | 13.0 | 6051204 | |
100 | 120 | 12.0 | 13.0 | 6051005 | 120 | 140 | 14.5 | 16.0 | 6051205 | |
100 | 120 | 14.5 | 16.0 | 6051006 | 125 | 133 | 10.0 | 11.0 | 6051250 | |
105 | 115 | 13.2 | 14.5 | 6051050 | 125 | 133 | 11.4 | 12.5 | 6051251 |
Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
125 | 140 | 9.0 | 10.0 | 6051252 | 140 | 160 | 14.5 | 16.0 | 6051404 | |
125 | 140 | 10.0 | 11.0 | 6051253 | 145 | 160 | 9.0 | 10.0 | 6051450 | |
125 | 140 | 10.9 | 12.0 | 6051254 | 145 | 160 | 10.0 | 11.0 | 6051451 | |
125 | 145 | 12.0 | 13.0 | 6051255 | 145 | 165 | 12.0 | 13.0 | 6051452 | |
125 | 145 | 14.5 | 16.0 | 6051256 | 150 | 160 | 11.0 | 12.0 | 6051500 | |
125 | 150 | 12.5 | 14.0 | 6051257 | 150 | 165 | 9.0 | 10.0 | 6051501 | |
130 | 140 | 14.5 | 16.0 | 6051300 | 150 | 165 | 10.0 | 11.0 | 6051502 | |
130 | 145 | 9.0 | 10.0 | 6051301 | 150 | 170 | 12.0 | 13.0 | 6051503 | |
130 | 145 | 10.0 | 11.0 | 6051302 | 150 | 170 | 13.2 | 14.5 | 6051504 | |
130 | 150 | 12.0 | 13.0 | 6051303 | 150 | 170 | 14.5 | 16.0 | 6051505 | |
130 | 150 | 14.5 | 16.0 | 6051304 | 155 | 170 | 9.0 | 10.0 | 6051550 | |
132 | 142 | 6.0 | 7.0 | 6051320 | 155 | 170 | 10.0 | 11.0 | 6051551 | |
133 | 143 | 6.0 | 7.0 | 6051330 | 155 | 170 | 14.5 | 16.0 | 6051552 | |
135 | 150 | 9.0 | 10.0 | 6051350 | 155 | 175 | 12.0 | 13.0 | 6051553 | |
135 | 150 | 10.0 | 11.0 | 6051351 | 160 | 175 | 9.0 | 10.0 | 6051600 | |
135 | 150 | 11.4 | 12.5 | 6051352 | 160 | 175 | 10.0 | 11.0 | 6051601 | |
135 | 155 | 12.0 | 13.0 | 6051353 | 160 | 180 | 12.0 | 13.0 | 6051602 | |
136 | 146 | 6.0 | 7.0 | 6051360 | 160 | 180 | 14.5 | 16.0 | 6051603 | |
140 | 150 | 6.0 | 7.0 | 6051400 | 165 | 180 | 9.0 | 10.0 | 6051650 | |
140 | 155 | 9.0 | 10.0 | 6051401 | 170 | 190 | 14.5 | 16.0 | 6051700 | |
140 | 155 | 10.0 | 11.0 | 6051402 | 180 | 200 | 11.8 | 13.0 | 6051800 | |
140 | 155 | 11.8 | 13.0 | 6051402 | 180 | 200 | 14.5 | 16.0 | 6051801 | |
140 | 160 | 12.0 | 13.0 | 6051403 | 185 | 200 | 10.9 | 12.0 | 6051850 |
